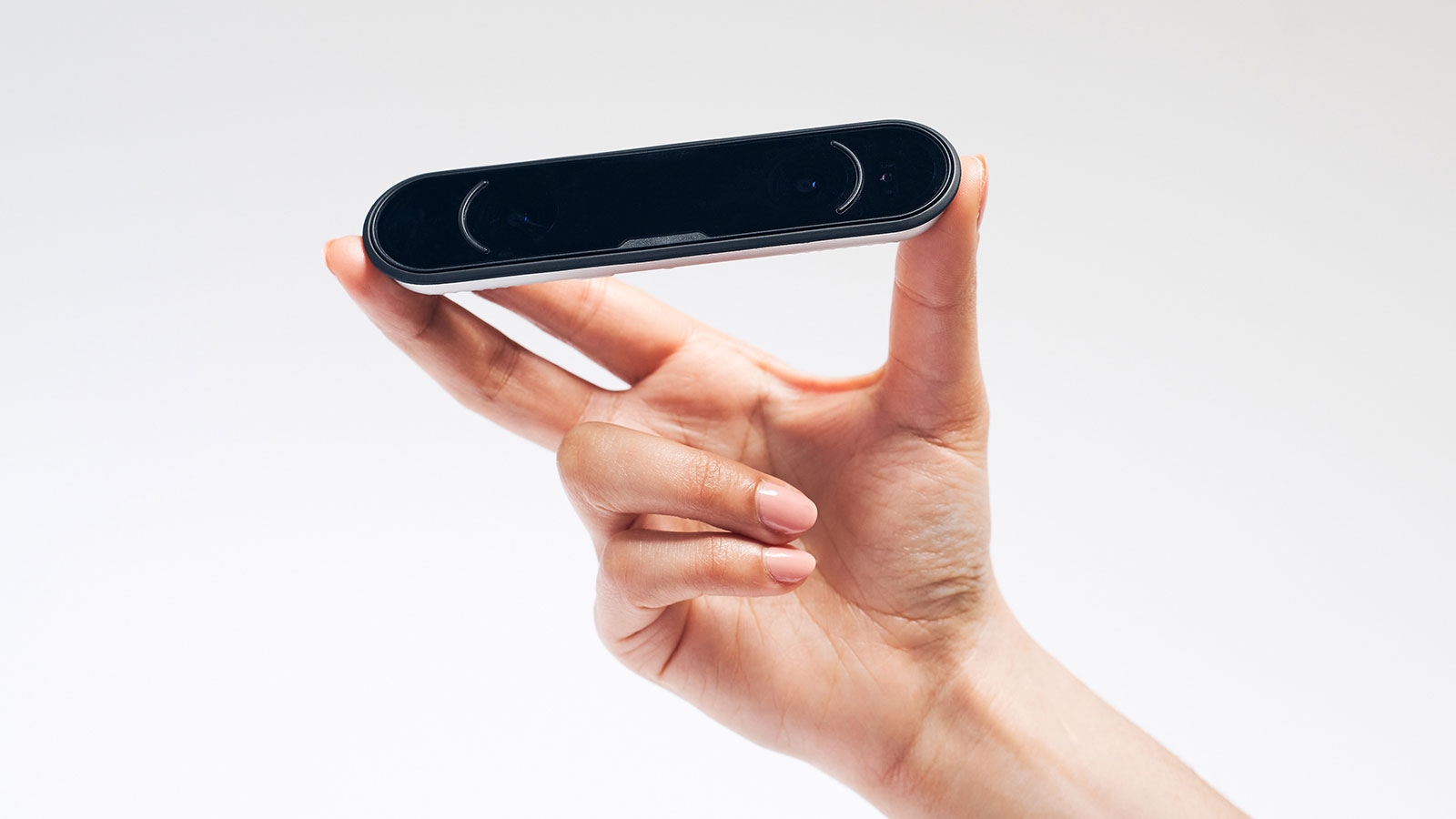

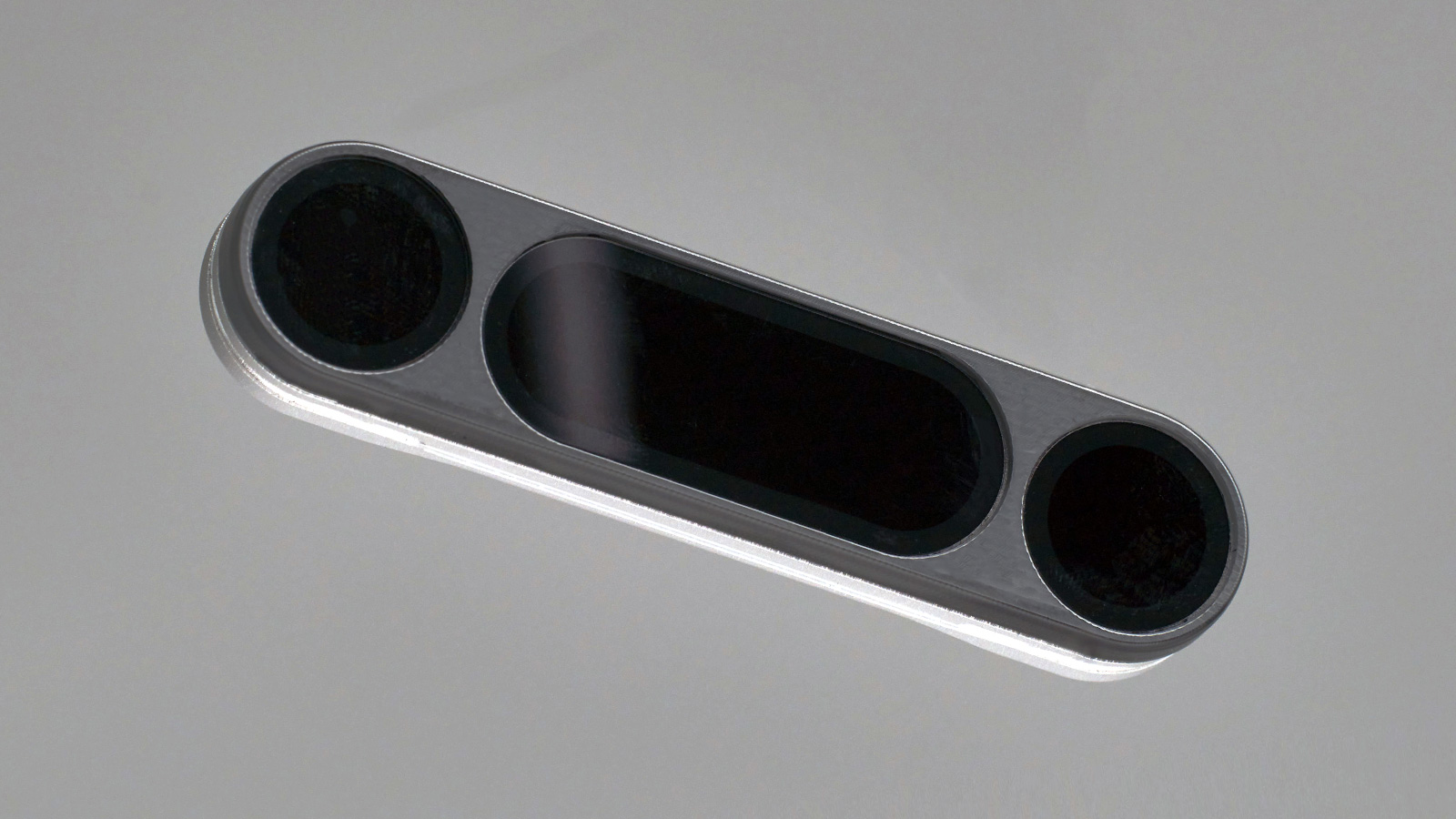

Leap Motion Controller 2
An accessible computer vision camera
By tracking hands, the Leap Motion Controller 2 camera enables touchless 3D interaction, making it possible to use hand tracking to control your computer instead of a keyboard or mouse, retrofit a touchscreen or holographic display, or upgrade the hand experience on most XR headsets. Alternatively it can be used for a number of CV applications, such as depth sensing or 3D scanning.
Technical Specifications
- Power supply requirement: 5VDC via USB, 500 mA
- Data connection: USB 3.0 via USB type C connector
- Tracking range and field of view: Depth between 10 cm (4”) to 110 cm (43”); 160° x 160° field of view
- Camera framerate: 115 fps maximum
- Operating wavelength: 850 nm
- Construction: Aluminium and scratch-resistant glass
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -30°C to 60°C (-22°F to 140°)
- Compliance: CE, FCC, UKCA, CCC, KC, PSE, RCM A-NZ, RoHS, REACH
- Compatible operating systems: Windows, macOS, and Android XR2
- Dimensions: 84 mm x 20 mm x 12 mm Weight: 29 g
System Requirements
- Windows® 10+
- 64-bit, Intel® i7 processor**
- 5th Gen (supports AVX instructions) macOS version 11.0+
- Supported processors: Intel® i7 processor, Apple m1, m2.
